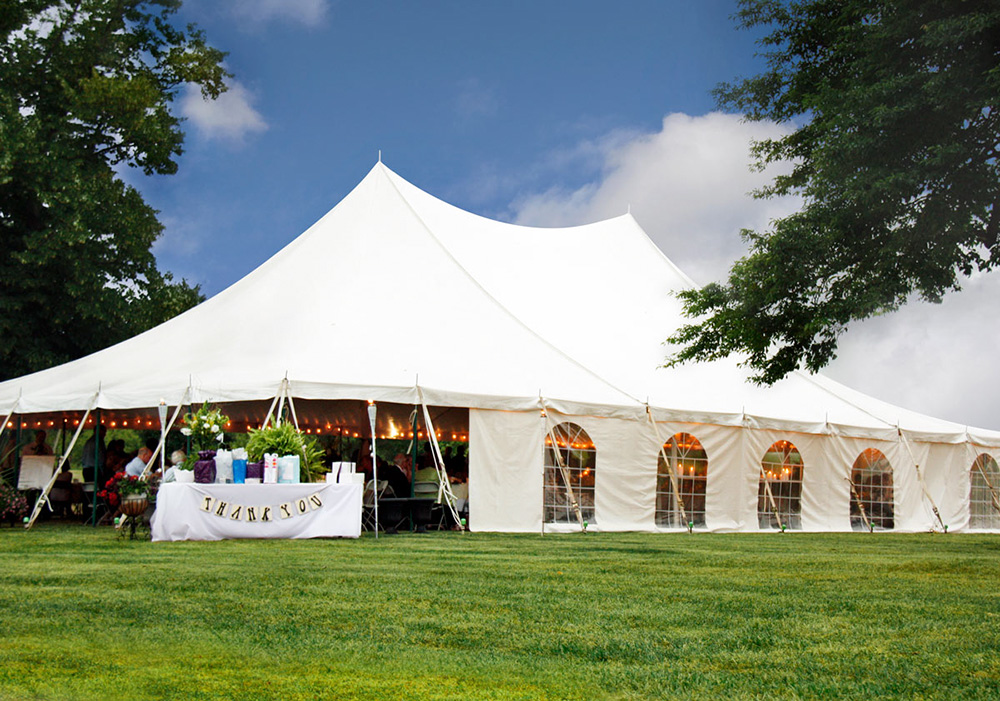

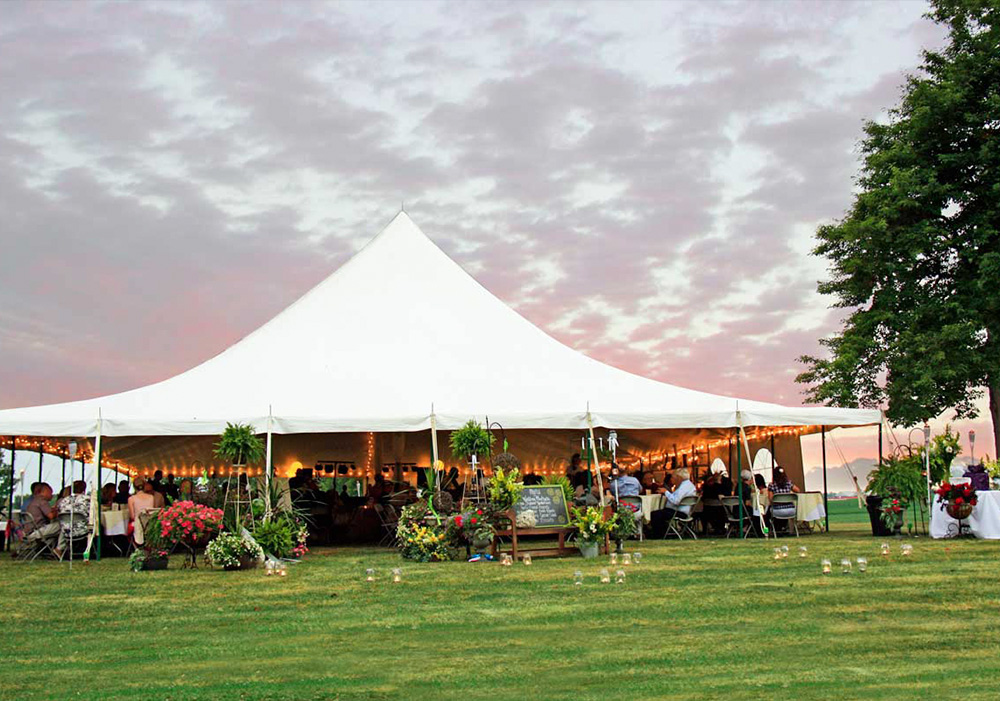

Event Tents
We import Tent spans from 3 meters to 70 meters. with various structures and complete supporting facilities which is tent solutions for large outdoor exhibitions, romantic weddings banquets, large warehouse, sport events, tourism, leisure, tent hotels, large concert and other occasions
Description
Side wall Material Membrane PVC Fabric/Glass Wall/Solid Plastic wall/Sandwich Panel wall
Textile roof and wall covering Premium grade, 850gsm with 0.8mm thickness high gloss white, PVC coated polyester fabric - UV resistant and flame retardant according to: DIN 4102 B14,
Span width: 15m/18m/20m/25m/43m
Main aluminum Profile 40x40x2.5mm Steel Pipe/60x60x3mm Steel Tube/166x88x3mm/204x110x4mm
Eave Height: 3m/4m/18m
Ridge height: 6.4m/7.2m/8.18m
Peak height: N/A
Bay distance: 3/5m
Roof pitch: 18° 18/20
Number of gable uprights: 2/3/4/5
Longest component (m): 10.5m
Minimum length: 10m
Maximum length: Unlimited in 3.00/5.00 m increments
Snow loading compliance: 45/m²
Max allowed wind speed to 102 km/h (0.50kN/m²)
Main profile size: 204/120/4mm aluminum profile thickness:4.13mm
Eave connection type: Aluminium Sliding
Aluminium type: GB6061/T6- Hard Pressed Extruded Structural Aluminium
Connecting components: Q235- hot dipped, structural grade corrosive resistant galvanised steel
People Capacity: 1 People /1.5 m²
